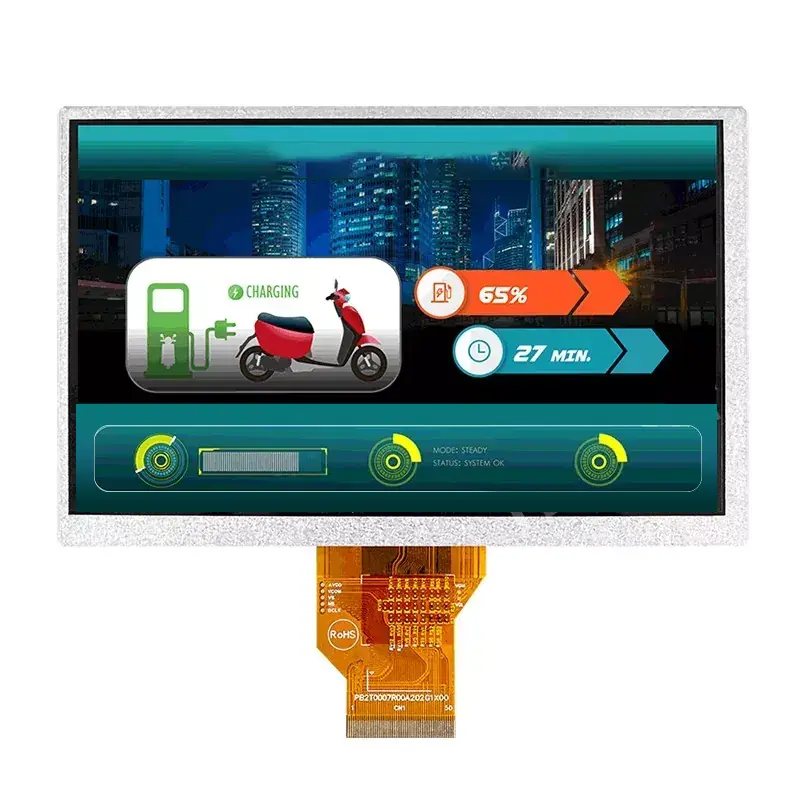

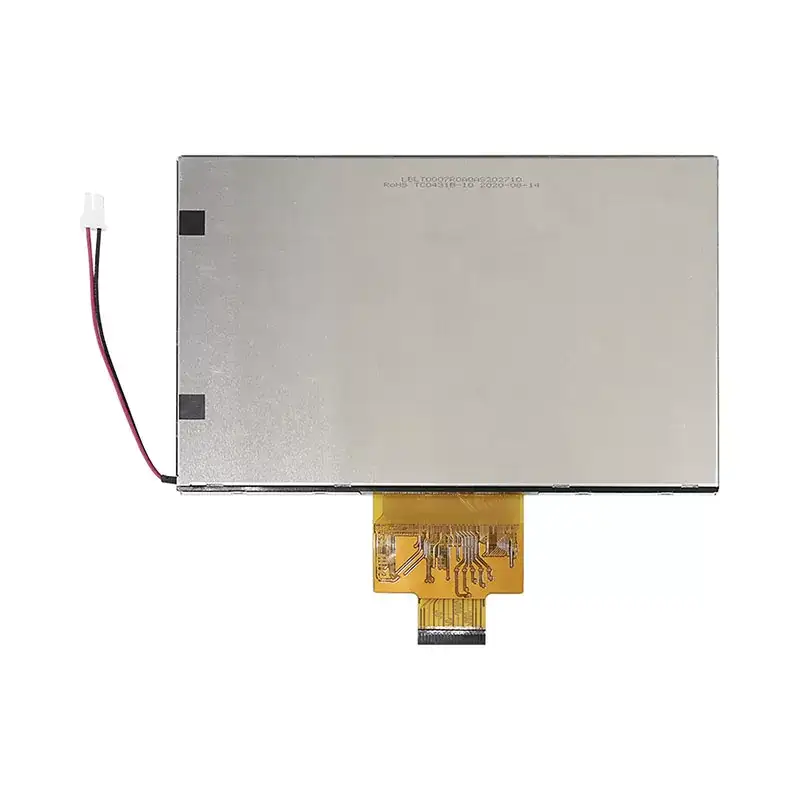

Modul TFT 7 inci 800x1280 Modha IPS

As the TFT Module is widely used in life, manufacturers and suppliers are increasingly. What makes this Victronix 7 inch 800x1280 MIPI IPS TFT Module different from other manufacturers? At first, its IPS technology ensures consistent color and clarity with an 85-degree viewing angle from all directions, 250 cd/m² typical brightness, and a high typical contrast ratio of 850:1. Secondly, it not only supports a MIPI interface with 2 data lanes + clock (24-pin connector) but also integrates a 20-chip white LED array (16V typ., 80mA, 1.28W) system with 50,000-hour lifespan (50% brightness retention) to ensure be used for a long-lasting in different industrial situations. Besides, it passes rigorous environmental stress tests (thermal shock, humidity, drop resistance) to operate reliably in extreme temperatures (-20°C to +70°C).

This Victronix 7 inch TFT Module is suitable for Industrial HMI, medical devices, portable instrumentation, and embedded systems requiring sunlight-readable, reliable displays.

Features of MIPI 4 Lanes 7 Inch 800x1280 All View Angle TFT LCD Module

· 800x1280 resolution

· All / Free / Wide viewing angle

· IPS TFT LCD display

·  MIPI 4 lane interface

· Portrait / vertical display

· Support capacitive touch

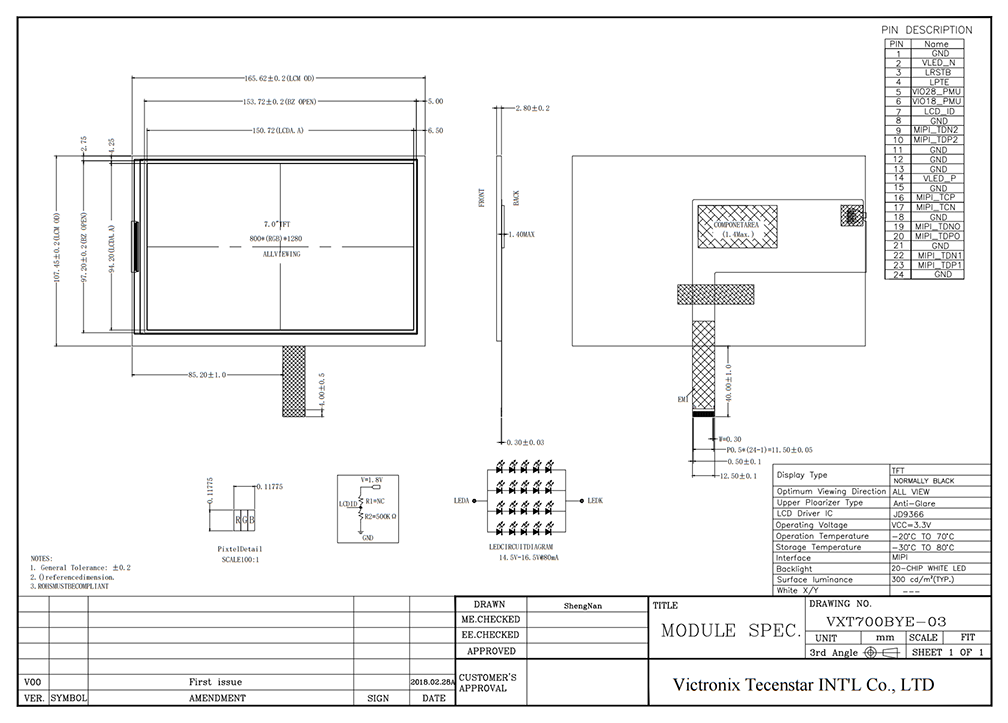

Specification of MIPI 4 Lanes 7 Inch 800x1280 All View Angle TFT LCD Module

Application of MIPI 4 Lanes 7 Inch 800x1280 All View Angle TFT LCD Module

· The 7inch 800x1280 IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, logistics device, and E-Bike.
